【SCM2-A0031L00】0.3MP High Performance 1/4-inch VGA USB Camera
NT$ 725.00
【SCM2-A0031L00】
Module Features:
| ▹ Sensor | : OV7725 CMOS Image Sensor with OmniPixel®2 Technology |
| ▹ Resolution | : 0.3MP (VGA) |
| ▹ Pixel size | : 6.0 µm x 6.0 μm |
| ▹ Array size | : 640(H) x 480(V) |
| ▹ Sensor Active Area | : 3984 µm(H) x 2952 µm(V) |
| ▹ Shutter type | : Electronic Rolling Shutter |
| ▹ Optical Format | : 1/4" Optical format |
| ▹ Output Format | : MJPEG / YUY2 |
| ▹ Max Image Transfer Rate | : max 60 fps for VGA |
| ▹ Focus Type | : Fixed focus |
| ▹ Holder | : M12 (S-mount) |
| ▹ DFOV | : 60° - 210° (depend on the chosen lens) |
| ▹ S/N Ratio | : 50dB |
| ▹ Dynamic Range | : 60dB |
| ▹ Supported OS | : Windows, Linux, Android and MAC |
| ▹ UVC compliant | : no additional drivers required |
| ▹ Operating Voltage | : DC 5V+/-5% |
| ▹ Operating Temperature Range | : -20°C to 70°C |
| ▹Power Consumption | : about 408mW while streaming 0.3MP @ 30fps |

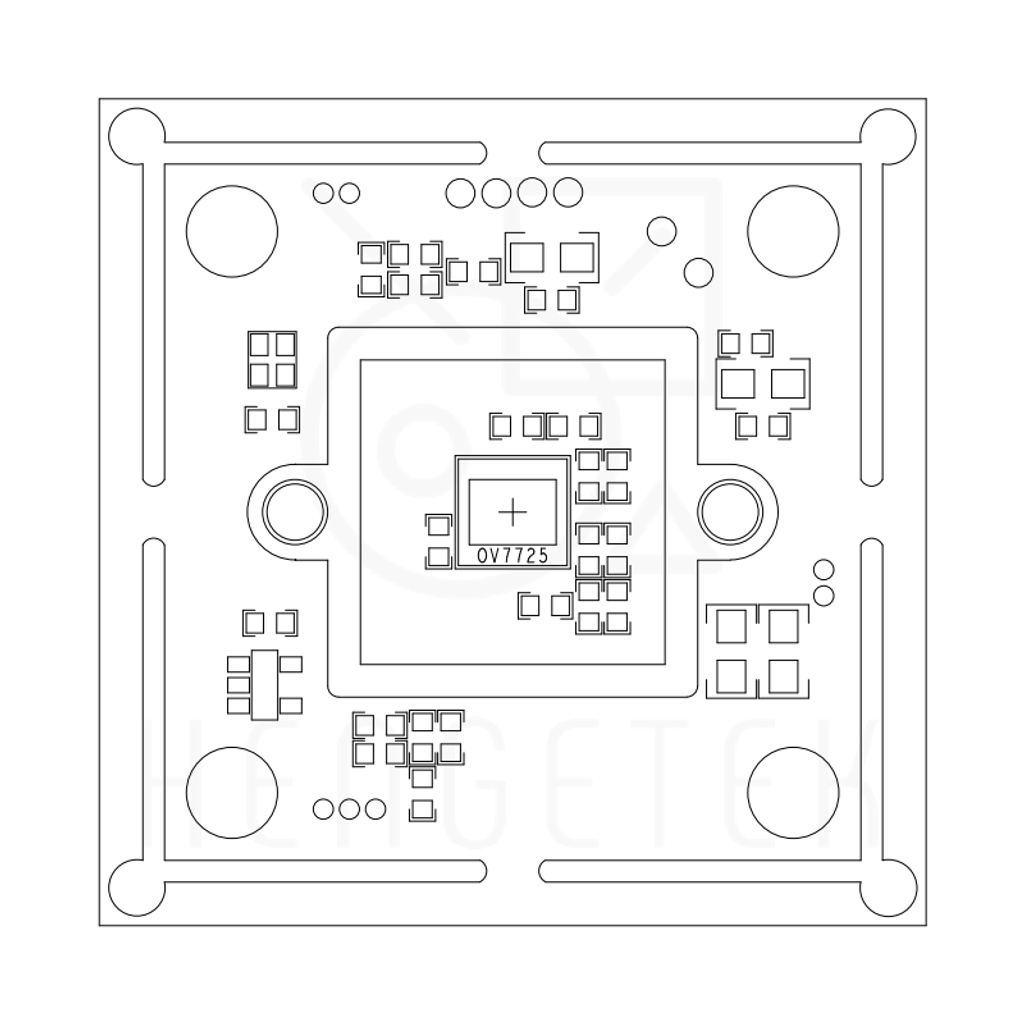

| ▹ Board Dimension | : 38 mm x 38 mm (32 mm x 32 mm) |
