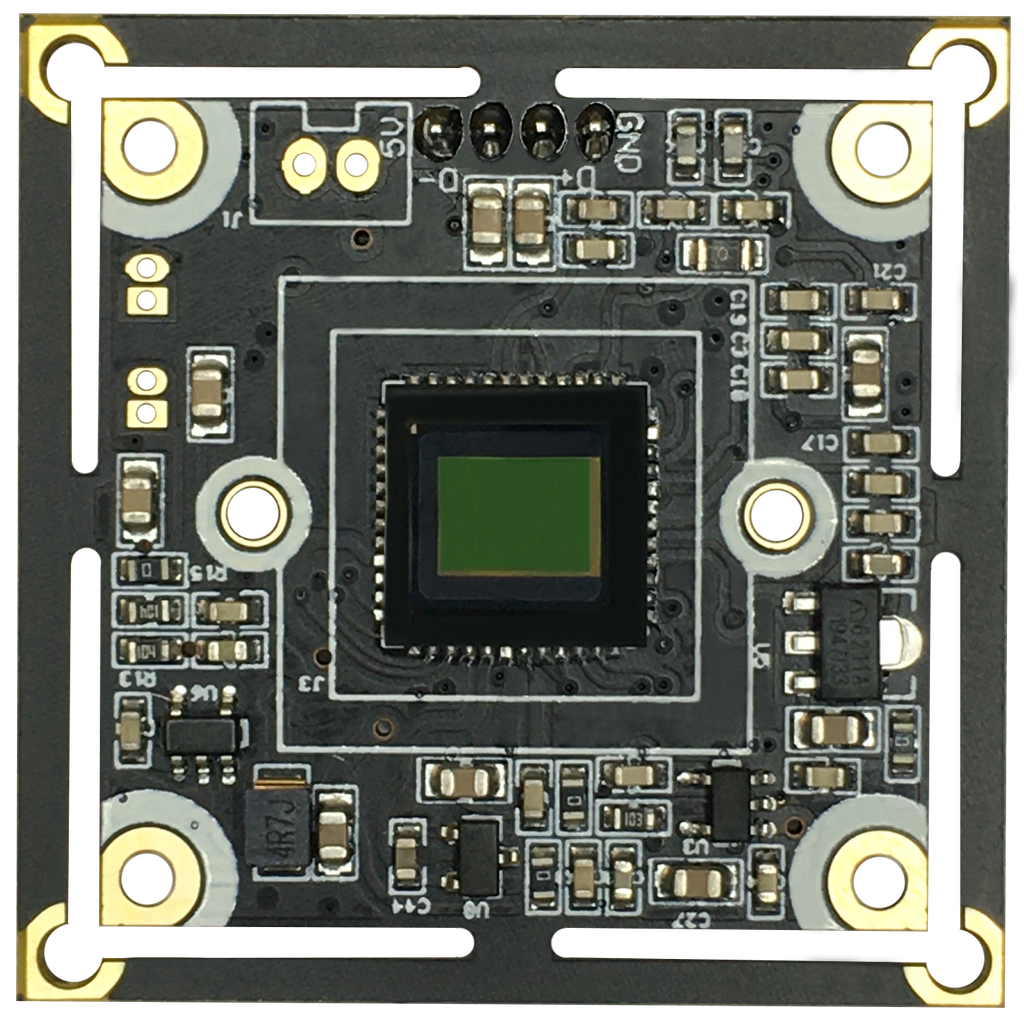

【SCM2-D0501L00】5.0MP Low Noise Low Light Sensitivity, High Definition 1/2.5-inch USB Camera
NT$ 1,280.00
【SCM2-D0501L00】
Module Features:
| ▹ Sensor | : MI5100 CMOS Image Sensor |
| ▹ Resolution | : 5.0MP |
| ▹ Pixel size | : 2.2 µm x 2.2 μm |
| ▹ Array size | : 2592(H) x 1944(V) |
| ▹ Sensor Active Area | : 5700 µm(H) x 4280 µm(V) |
| ▹ Shutter type | : Electronic Rolling Shutter |
| ▹ Optical Format | : 1/2.5" Optical format |
| ▹ Output Format | : MJPEG / YUY2 |
| ▹ Max Image Transfer Rate | : 15 fps at 2592x1944, 70 fps at VGA |
| ▹ Focus Type | : Fixed focus |
| ▹ Holder | : M12 (S-mount) |
| ▹ DFOV | : 20° - 210° (depend on the chosen lens) |
| ▹ S/N Ratio | : 40dB |
| ▹ Dynamic Range | : 70dB |
| ▹ Supported OS | : Windows, Linux, Android and MAC |
| ▹ UVC compliant | : no additional drivers required |
| ▹ Operating Voltage | : DC 5V+/-5% |
| ▹ Operating Temperature Range | : -20°C to 70°C |
| ▹Power Consumption | : about 1.11W while streaming 5.0MP @ 15fps |

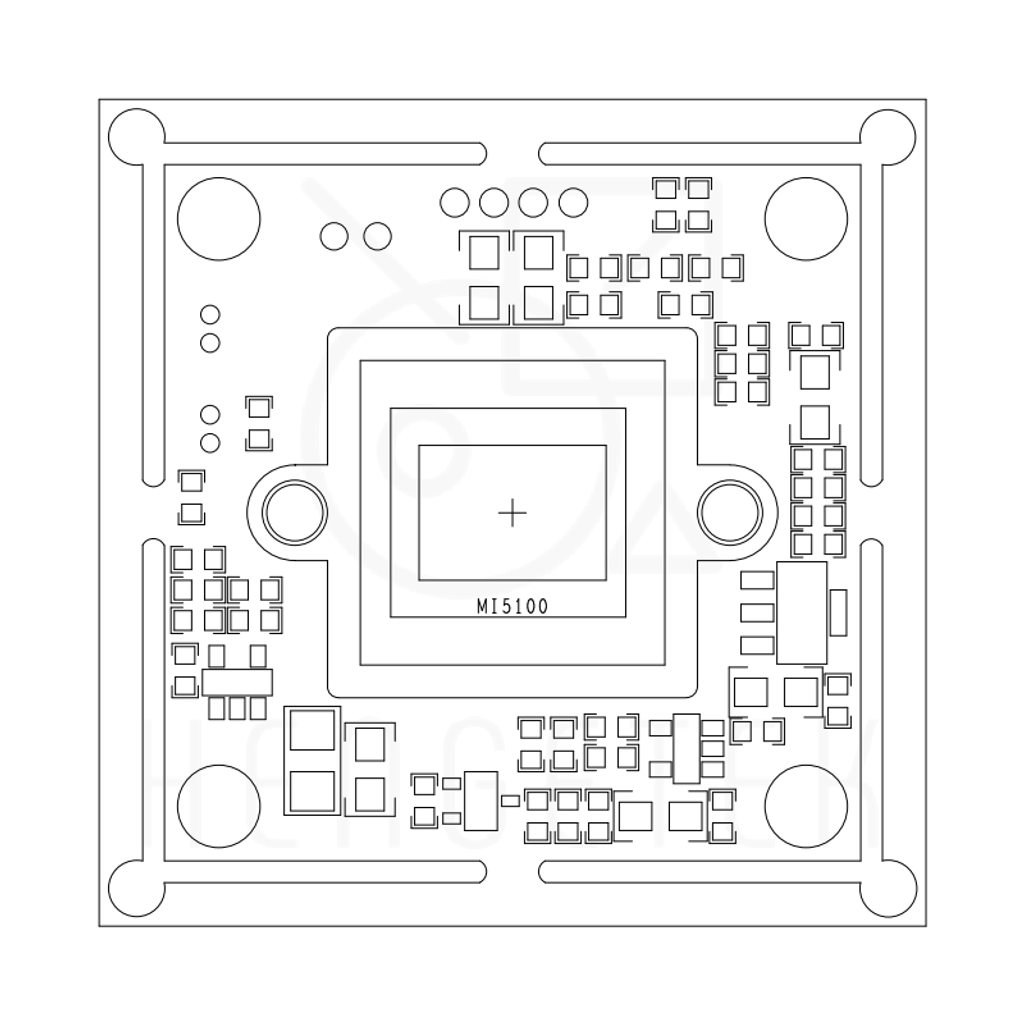

| ▹ Board Dimension | : 38 mm x 38 mm (32 mm x 32 mm) |
