【SCM2-F0101L00】1.0MP High-Speed 1/3.7-inch HD USB Camera
NT$ 950.00
【SCM2-F0101L00】
Module Features:
| ▹ Sensor | : HM1246 CMOS Image Sensor |
| ▹ Resolution | : 1.0MP |
| ▹ Pixel size | : 3.0 µm x 3.0 μm |
| ▹ Array size | : 1280(H) x 960(V) / Full 1416(H) x 976(V) |
| ▹ Sensor Active Area | : 4253 µm(H) x 3032 µm(V) |
| ▹ Shutter type | : Electronic Rolling Shutter |
| ▹ Optical Format | : 1/3.7" Optical format |
| ▹ Output Format | : MJPEG |
| ▹ Max Image Transfer Rate | : 40 fps for 720P, 80fps at VGA |
| ▹ Focus Type | : Fixed focus |
| ▹ Holder | : M12 (S-mount) |
| ▹ DFOV | : 80° - 180° (depend on the chosen lens) |
| ▹ S/N Ratio | : 50dB |
| ▹ Dynamic Range | : 90dB |
| ▹ Supported OS | : Windows, Linux, Android and MAC |
| ▹ UVC compliant | : no additional drivers required |
| ▹ Operating Voltage | : DC 5V+/-5% |
| ▹ Operating Temperature Range | : -20°C to 70°C |
| ▹Power Consumption | : about 975mW while streaming 1.0MP @ 40fps |

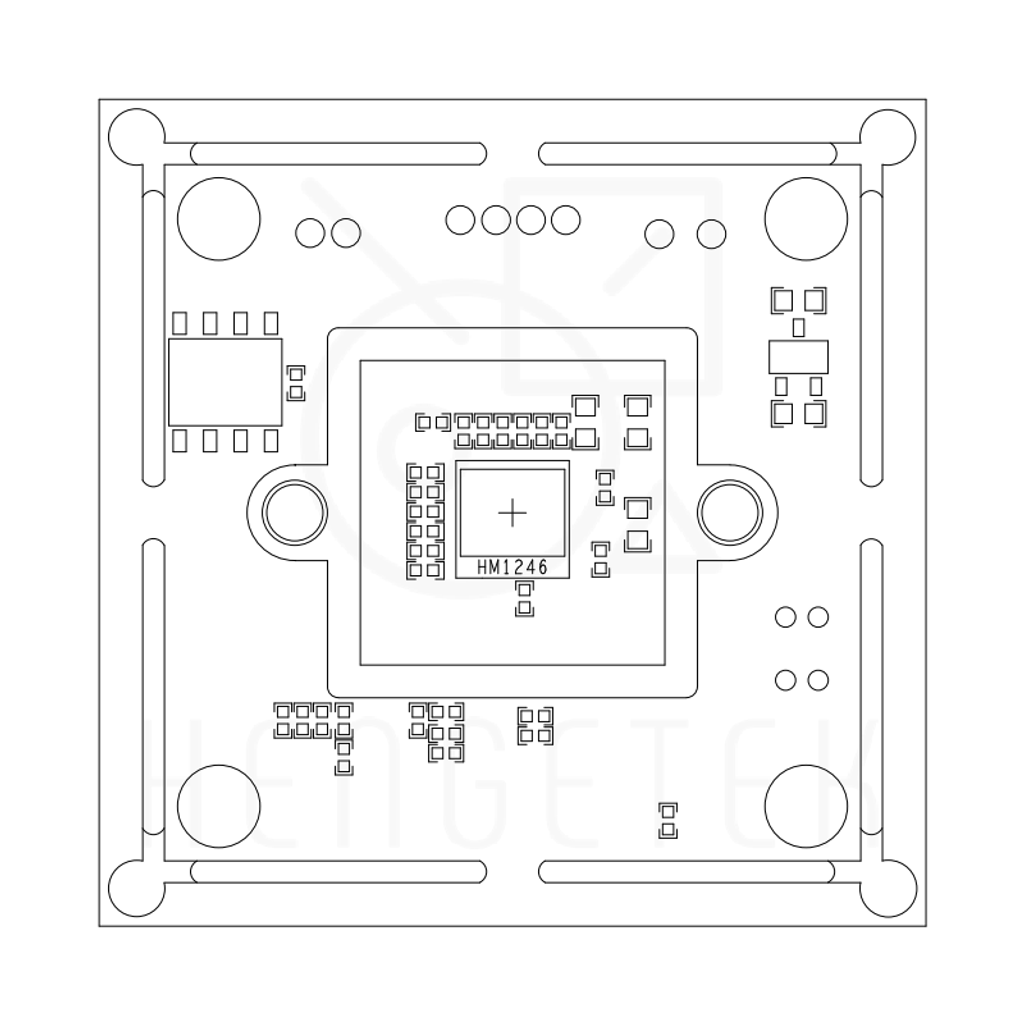

| ▹ Board Dimension | : 38 mm x 38 mm (32 mm x 32 mm) |
